AutroSafe 4 provides advanced functionality for a wide range of applications. The system is designed to meet all requirements in the high-end segment of the onshore, maritime and offshore market, and is certified according to Marine Equipment Directive (MED) for Wheel marking, Construction Products Directive (CPD) for CE marking, both requiring EN 54-2 and 4 compliance, and Factory Mutual (FM) approval according to NFPA 72.

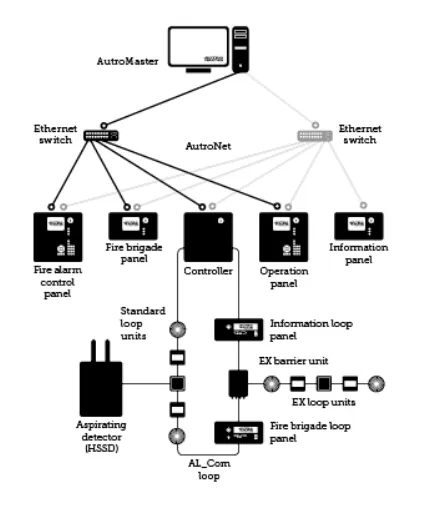

Reliable communication is paramount to your safety. That’s why we have added AutroNet to the AutroSafe system, an innovative network solution safeguarding communication between panels. AutroNet ensures a redundant and high-speed network expanding the reach of the AutroSafe system even further. The system can be set up either in a star or ring network, depending on your needs.
A maximum of 64 system units (panels, controllers) can be connected to the AutroNet. The system has a great capacity, and the fact that all types of loop units can be connected to the same detection loop gives large flexibility. Uploading of configuration data or system software to the entire system can be done from one single point. The USB port is used for downloading data from a USB memory stick.
Maximum capacity
RS232/RS422/RS485: 1 AutroFieldBus interface: 1 USB port 1
| Panels per system: | 64 |
| Detection loops per panel: | 6/12* |
| Loop Units per loop: | 127** |
| Loop units per PowerLoop | 15** |
| Units per AutroFieldBus: | 31 |
| Alarm units per loop: | 40** |
| Loop units per panel, ref. EN 54: | 512 |
| Ethernet ports: | 2 |
* Max. 12 loops per panel/controller, where
6 can be placed inside the cabinet.
**Depending on cable choice
Products:

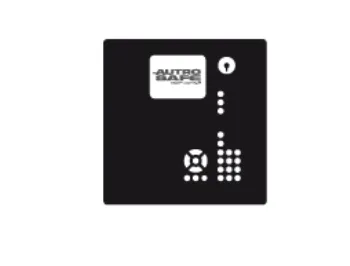

BS-420 is a complete fire alarm control panel with full operation capabilities. The panel serves as an operating panel for one or several defined operation zones. All alarm handling and system features can be controlled and monitored from the panel.
The repeater panel serves as either a fire brigade panel or an information panel, depending on the settings.
